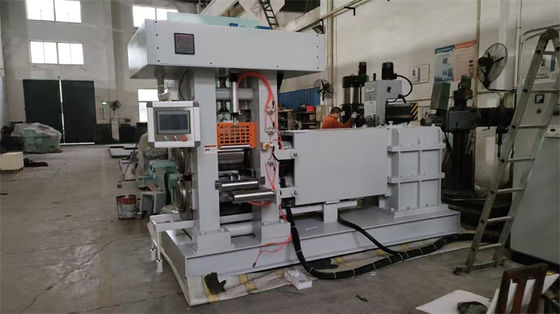

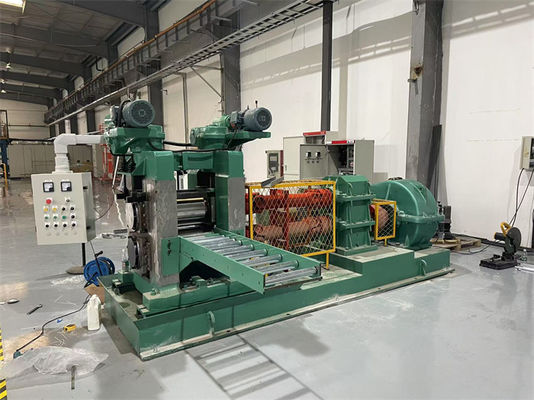

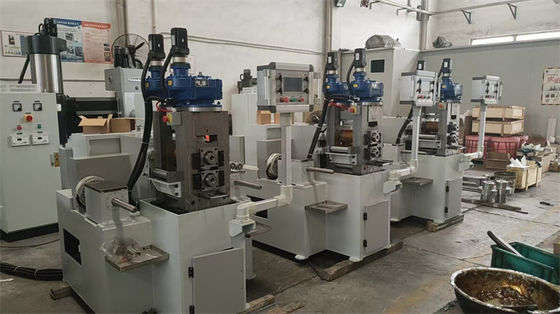

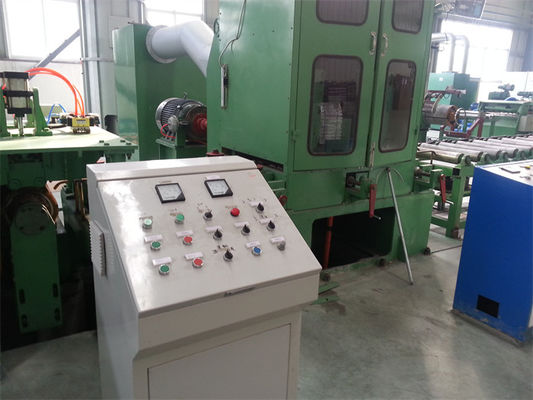

Mini Laboratory Cold Rolling Mill for R & D 100-300mm width 2Hi 4Hi

Mini Laboratory Cold Rolling Mill for R & D 100-300mm width 2Hi 4Hi

Mini Laboratory cold rolling mill is kind of mini cold mill, compact, precision-engineered system designed to simulate industrial metal rolling processes in controlled research environments. Laboratory cold rolling mills bridge fundamental research and industrial scaling, offering unparalleled control, precision, and versatility for metallurgical studies. They enable cost-effective exploration of rolling mechanics, accelerating material innovations and process optimizations. It performs plastic deformation of metal sheets/strips at hot, room or near-ambient temperatures via rotating rolls, achieving the aims of:

• Thickness reduction (from mm to µm-scale foils)
• Surface finish enhancement
• Microstructural modification (e.g., work hardening, texture control)
• Mechanical property adjustment

​Widely used in Applications:

Process simulation, Material R&D, Fundamental research:, Education, Prototype production, etc.

Features

1. Compact Design

Bench-top or standalone installation.

Rolling force: Typically 5–100 metric tons (vs. industrial-scale 1000+ tons).

Roll dimensions: Work roll diameter: Ø20–200 mm

Roll barrel length: 100–300 mm

Material capacity:

Width: 50–300 mm

Initial thickness: 0.1–5 mm → Final thickness: <1 µm–0.5 mm (foils).

2. High Precision & Control

Micron-level gap control: Servo-driven or hydraulic screw-down systems (accuracy: ±1–10 µm).

Advanced instrumentation: Real-time monitoring of rolling force, gap, speed, tension, and temperature.

Programmable automation: PLC/PC-controlled multi-pass schedules, variable reductions, and tension profiles.

Optional tension control: Integrated uncoiler/coiler for strip rolling simulations.

3. Flexibility

Interchangeable rolls: Options for material (steel, tungsten carbide), surface finish (polished, textured), and profile (flat, crowned).

Wide parameter ranges: Adjustable speed (0.1–30 m/min) and reduction per pass (1–50%).

Modular add-ons: Heating/cooling units, in-line thickness gauges, or surface scanners.

4. Safety

Emergency stops, safety interlocks, and protective enclosures compliant with lab standards.

Major Components

Frame: Rigid housing (closed-gap or short-stress path design) to withstand rolling forces.

Work rolls: Precision-ground, high-hardness rolls for direct material contact.

Backup rolls (4-high/6-high mills): Minimize work roll deflection for uniform thickness.

Screw-down system:

Mechanical (servo + ball screw) or hydraulic actuation.

Drive system: Motor (AC/DC/servo) + gearbox + spindle coupling.

Material guidance: Entry/exit tables with lateral alignment.

Tension control (optional): Motorized uncoiler/coiler with load cells.

Sensors & DAQ: Force transducers, encoders, laser micrometers, etc.

HMI/Software: Parameter setting, data logging, and process visualization.

Specifications

Compatible Materials

Steels (low-carbon, stainless)

Aluminum/copper/titanium/magnesium alloys

Nickel superalloys

Metal-matrix composites

Precious metal foils (Au, Ag)

Advantages

✔ Low operational cost (energy/space/maintenance vs. industrial mills)
✔ Rapid experimentation with high-repeatability conditions
✔ Comprehensive data acquisition for process-structure-property analysis
✔ Customizable workflows (single/multi-pass, tension/compression modes)
✔ Minimal safety risks for lab environments
